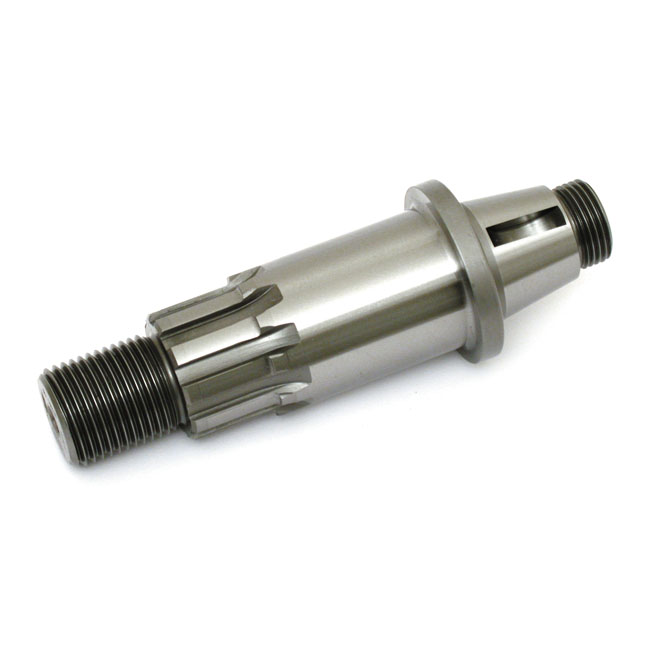

JIMS, sprocket shaft. 56-64 B.T.
Artikelnummer: 509630 Hersteller: JIMS Beschreibung: Fits with OEM flywheels. Sprocket shaft has keyway; use 23985-56 key (MCS 517960). Taper is 8-1/2�. Shaft is 3.51" long from bearing shoulder to end of smalll thread. Use 24023-36 JIMS nut (MCS 978258) on flywheel side and use 24003-55 nut (MCS 518000) on sprocket side. JIMS shafts are precision machined in Camarillo; California from a special order steel. Each and every part is thoroughly inspected and after heat treating all threads go through a special process to make them withstand greater torque stress. All shafts are ground to a 16 micron finish or better; unless specified otherwise. All ground diameters are concentric to well within .0003"; making truing and rebuilding quicker and with less effort. Note: Will not fit electric start Panhead models with the aluminum primary. |
inkl. 19% USt. Mehr Informationen >> |
